Die Casting Ford Automotive Body
Products
Automotive shock absorber
| Part Number: | KR011 |
|---|---|
| Casting Type: | Squeeze casting |
| Brand Name: | TOYOTA |
| Product Material: | Aluminum(AiSi7Mg) |
| Product Weight: | <500g |
| Porosity Req.: | free with X ray 100% check |
| Tensile strength: | Rm>200N/mm2 |
| Yield Strength: | Rp>120N/mm2 |
| Dendrite spacing: | <45um |

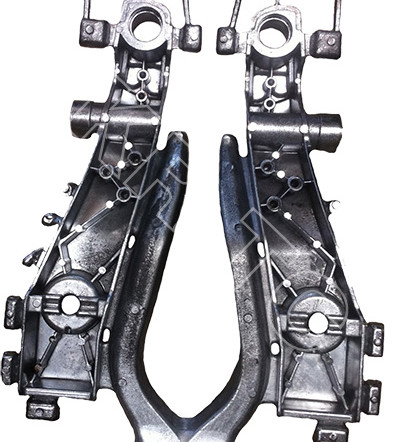

Automotive Control Arm
| Part Number: | KR001 |
|---|---|
| Casting Type: | Squeeze casting |
| Brand Name: | Ford |
| Product Material: | Aluminum(AiSi7Mg) |
| Product Weight: | >3.5kg |
| Porosity Req.: | free with X ray 100% check |
| Tensile strength: | Rm>270N/mm2 |
| Yield Strength: | Rp>200N/mm2 |
| Dendrite spacing: | <45um |
High Vacuum Die Casting Engine Support
| Part Number: | KR002 |
|---|---|
| Casting Type: | High vacuum die casting |
| Brand Name: | Audi |
| Product Material: | Aluminum(AiSi12Cu) |
| Product Weight: | >500g |
| Porosity Req.: | D<0.2mm X ray 100% check |
| Tensile strength: | N/A |
| Yield Strength: | N/A |
| Dendrite spacing: | <40um |
High Vacuum Die Casting E-unit housing
| Part Number: | KR003 |
|---|---|
| Casting Type: | High vacuum die casting |
| Brand Name: | AUTOLIV |
| Product Material: | ADC12 |
| Product Weight: | >500g |
| Porosity Req.: | D<0.2mm X ray 100% check |
| Tensile strength: | N/A |
| Yield Strength: | N/A |
| Dendrite spacing: | <40um |
Automotive air conditioning compressor housing
| Part Number: | KR004 |
|---|---|
| Casting Type: | High vacuum die casting |
| Brand Name: | Shanghai VW |
| Product Material: | ADC12 |
| Product Weight: | >500g |
| Porosity Req.: | No porosity X-ray check |
| Tensile strength: | N/A |
| Yield Strength: | N/A |
| Dendrite spacing: | N/A |
automotive link
| Part Number: | KR005 |
|---|---|
| Casting Type: | High vacuum die casting |
| Brand Name: | Shanghai VW |
| Product Material: | ADC12 |
| Product Weight: | >500g |
| Porosity Req.: | No porosity by X-ray check |
| Tensile strength: | N/A |
| Yield Strength: | N/A |
| Dendrite spacing: | N/A |
Oil Automotive Body
| Part Number: | KR006 |
|---|---|
| Casting Type: | High vacuum die casting |
| Brand Name: | FORD |
| Product Material: | ADC12 |
| Product Weight: | >500g |
| Porosity Req.: | <1.5mm by X-ray check |
| Tensile strength: | N/A |
| Yield Strength: | N/A |
| Dendrite spacing: | N/A |
squeeze casting auto part
| Part Number: | KR007 |
|---|---|
| Casting Type: | Squeeze casting |
| Brand Name: | FORD |
| Product Material: | ADC12 |
| Product Weight: | >500g |
| Porosity Req.: | <1.5mm by X-ray check |
| Tensile strength: | N/A |
| Yield Strength: | N/A |
| Dendrite spacing: | N/A |
Nissan Automotive Bracket
| Part Number: | KR008 |
|---|---|
| Casting Type: | High vacuum die casting |
| Brand Name: | NISSAN |
| Product Material: | ADC12 |
| Product Weight: | >500g |
| Porosity Req.: | <1.5mm by X-ray check |
| Tensile strength: | N/A |
| Yield Strength: | N/A |
| Dendrite spacing: | N/A |
Die casting engine support
| Part Number: | KR009 |
|---|---|
| Casting Type: | High vacuum die casting |
| Brand Name: | AUDI |
| Product Material: | ADC12 |
| Product Weight: | >500g |
| Porosity Req.: | <1.5mm by X-ray check |
| Tensile strength: | N/A |
| Yield Strength: | N/A |
| Dendrite spacing: | N/A |
Automotive engine support
| Part Number: | KR010 |
|---|---|
| Casting Type: | High vacuum die casting |
| Brand Name: | VW |
| Product Material: | ADC12 |
| Product Weight: | <500g |
| Porosity Req.: | <1.5mm by X-ray check |
| Tensile strength: | N/A |
| Yield Strength: | N/A |
| Dendrite spacing: | N/A |
